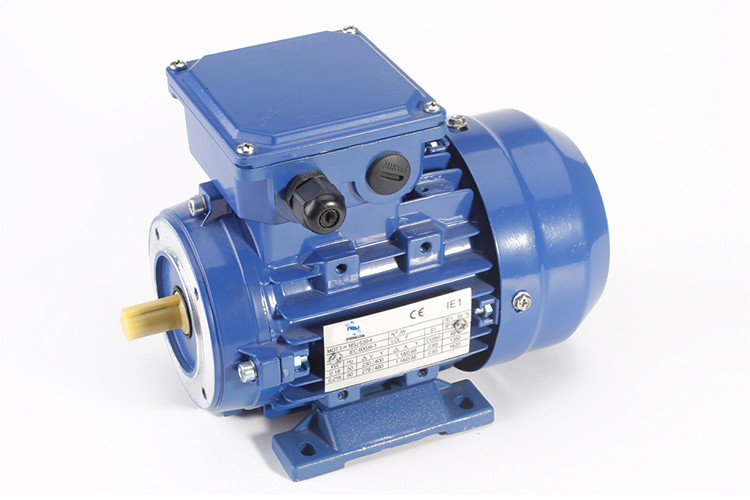

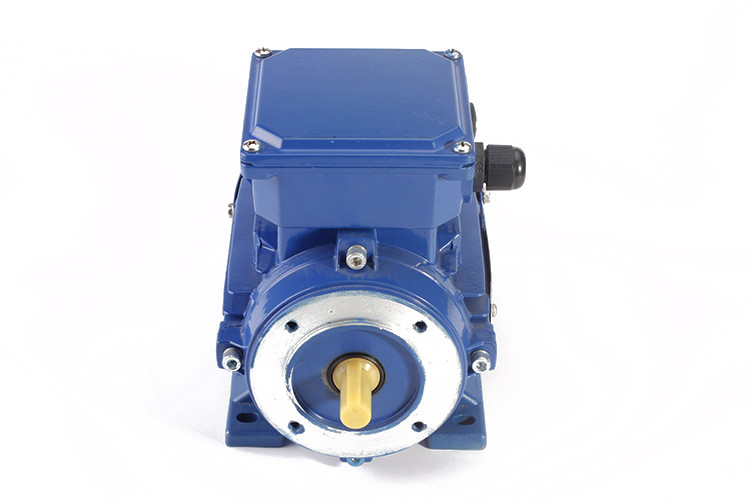

Face Mount Three Phase Induction Motor with Hollow Shaft Frame 71
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xStarting Method | Direct On Line | Number Of Poles | 6 |
---|---|---|---|
Terminal Box | On The Top | Rotation | CW And CCW |
Insulation Class | B / F / H | Product Name | 3 Phase Induction Motor |
Application | General Driving | ||
High Light | three phase induction motor,squirrel cage electric motor |
Face Mount Three Phase Induction Motor with Hollow Shaft Frame 71
3 Phase Induction Motor PRODUCT DESCRIPTIONS
Like another electric motor, 3PH induction motors also have a rotor and stator. The stator is static, and it carries three-phase windings named stator winding, and the rotor is a rotating one, and it carries the short-circuited windings named rotor winding.
ADVANTAGE OF ZHONGZHI COMPANY MOTOR
1. Rated outputs and frame sizes following IEC60034 standards
2. Shortly Delivery Time
3. 100% Tested Before Shipment
4. Sincerely and Professional Service
5. Duty type S1 with sufficient thermal margin to withstand short overload
3 Phase Induction Motor OPERATING CONDITIONS
1. Protection Level At Least IP23
2. Maximum ambient 40℃
3. Altitude≤1000m a.s.l
4. Enclosure protection IP55
5. Insulation Class: B / F / H
PERFORMANCE CHART
Model | Power |
(V) |
(HZ) | Current (A) | Power Factor |
Eff (%) |
Speed (r/min) |
Tstart/ Tn |
Tmax/ Tn |
Ist/ In |
||||||||||||||
HP | KW | |||||||||||||||||||||||
MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||
MS562-2 | 0.16 | 0.12 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||||
MS631-2 | 0.25 | 0.18 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-2 | 0.33 | 0.25 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-2 | 0.5 | 0.37 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-2 | 0.75 | 0.55 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-2 | 1 | 0.75 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-2 | 1.5 | 1.1 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-2 | 2 | 1.5 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90L-2 | 3 | 2.2 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L-2 | 4 | 3 | 6.31 | 0.87 | 83 | 2880 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-2 | 5.5 | 4 | 8.12 | 0.88 | 85 | 2890 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S1-2 | 7.5 | 5.5 | 11 | 0.88 | 86 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S2-2 | 10 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS160L-2 | 25 | 18.5 | 34.7 | 0.9 | 90 | 2930 | 2.3 | 2.4 | 7 | |||||||||||||||
MS561-4 | 0.08 | 0.06 | 0.27 | 0.68 | 50 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS562-4 | 0.12 | 0.09 | 0.36 | 0.7 | 54 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS631-4 | 0.16 | 0.12 | 0.48 | 0.63 | 60 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-4 | 0.25 | 0.18 | 0.65 | 0.66 | 64 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-4 | 0.33 | 0.25 | 0.83 | 0.68 | 67 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-4 | 0.5 | 0.37 | 1.12 | 0.72 | 69 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-4 | 0.75 | 0.55 | 1.56 | 0.73 | 73 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-4 | 1 | 0.75 | 2.01 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-4 | 1.5 | 1.1 | 2.83 | 0.78 | 76 | 1400 | 2.3 | 2.4 | 5 | |||||||||||||||
MS90L-4 | 2 | 1.5 | 3.84 | 0.78 | 76 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L1-4 | 3 | 2.2 | 4.2 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L2-4 | 4 | 3 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-4 | 5.5 | 4 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S-4 | 7.5 | 5.5 | 11.8 | 0.83 | 85.5 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132M-4 | 10 | 7.5 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS711-6 | 0.24 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS712-6 | 0.33 | 0.25 | 0.95 | 0.68 | 59 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS801-6 | 0.5 | 0.37 | 1.3 | 0.7 | 62 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS802-6 | 0.75 | 0.55 | 1.79 | 0.72 | 65 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS90S-6 | 1 | 0.75 | 2.29 | 0.72 | 69 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS90L-6 | 1.5 | 1.1 | 3.18 | 0.73 | 72 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS100L-6 | 2 | 1.5 | 3.89 | 0.76 | 76 | 940 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS112M-6 | 3 | 2.2 | 5.57 | 0.76 | 79 | 940 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132S-6 | 4 | 3 | 7.4 | 0.76 | 81 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M1-6 | 5.5 | 4 | 9.75 | 0.76 | 82 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M2-6 | 7.5 | 5.5 | 12.9 | 0.77 | 84 | 960 | 2.2 | 2.3 | 6.5 |
3 Phase Induction Motor GUARANTEE
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
OUR SERVICE
1. Directly factory sale.
2. Quick response to 2-8hours, response rates over 92%.
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
