High Performance 5 Hp Single Phase Induction Motor With Cooled Roll Silicon YC Series

  • High Performance 5 Hp Single Phase Induction Motor With Cooled Roll Silicon YC Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC132M-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure B3/B35/B5 HS Code 85014000 00
Output 7.5HP /5KW Pole 4
Protection Class IP44/54 Frequency 50Hz/60Hz
Insulation Class B/F/H Product Name Single Phase Induction Motor
High Light

single phase electric motor

,

single phase asynchronous motor
Leave a Message
Product Description

High-Performance YC Series 5 Hp Electric Motor With Cooled Roll Silicon





Single Phase Induction Motor MOTOR FEATURES:



  • Ambient Temperature: -15°C-40°C
  • Model of CONNECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
  • Mounting: B3; B35; B34; B14; B5; V1;
  • Current: 1.5-30 A (AC);
  • Duty: continuous (S1);
  • Insulation Class: B / F;
  • Protection Class: IP44 / IP54;
  • Cooling Method: ICO 141 Standards;
  • High-quality magnet wire
  • Vacuum varnish impregnation for superior tropic proof insulation
  • Industrial type service factors



DESCRIPTION:



YC series single-phase asynchronous motor applied to general machinery and equipment without special requirements, such as agricultural machinery, food machinery, fan, water pump, machine, mixing machine, air compressor.





OPERATING LIMITS:



Ambient Temperature: -15°C~40°C

Altitude: not exceed 1000 Meter

Rated Voltage: 380V or any voltage between 220-1140V

Rated Frequency: 50Hz/60Hz

Protection Class: IP44, IP54, IP55

Insulation Class: B/F

Cooling Method: IC0141

Working Duty: S1(Continuous)

Humidity: Lower than 90%

Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above



Products Details:



Site conditions Motors are suitable for the most working environment at a temperature from -15°C t0 +40°C and an altitude below 1000 meters.
Insulation The motors' insulation system is set to Class F(105K), examined by Class B(80K), which ensures the lifespan and reliability of the motors.
Motor protection Motors can be installed with PTC, PT100 used winding and bearing temperature measurement on request.
Voltage and frequency The standard voltage and frequency is 380V 50HZ and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration Motors are designed for vibration class A. Vibration class B is available on request.
Duty Continuous(S1)
Cooling and ventilation The standard cooling method is totally enclosed fan cooled(TEFC) following IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding 100% Copper Wire
Protection class The standard protection class is IP54/IP55, which can be used in humid and dusty environments. Higher degrees of protection are available.
Quality assurance From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.



PERFORMANCE CHART:



Model    Output     HP    KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2 0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8
YC80B-2 0.75 0.55 220 5.3 2880 65 76.5 2.8 6.5 1.8
YC80C-2 1 0.75 220 6.7 2880 68 77.5 2.8 6.5 1.8
YC90S-2 1.5 1.1 220 9.1 2880 71 79.7 2.4 7.0 1.8
YC100L-2 2 1.5 220 11.4 2900 72 81.3 2.4 7.0 1.8
Y-112M-2 3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8
YC112M1-2 4 3 220 21.4 2900 76 84.9 2.2 7.0 1.8
YC112M2-2 5 3.7 220 24.8 2900 79 85.5 2.2 7.0 1.8
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8
YC80C-4 0.75 0.55 220 6 1450 64 0.65 2.8 6.0 1.8
YC90S-4 1 0.75 220 7.7 1450 67 0.66 2.4 6.5 1.8
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8
YC112M1-4 3 2.2 220 18.5 1450 72 0.72 2.4 6.5 1.8
YC132SA-4 4 3 220 22.4 1450 74 0.73 2.1 6.5 1.8
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8
YC132M-4 7.5 5 220 30.5 1450 81 0.95 2.1 6.5 1.8

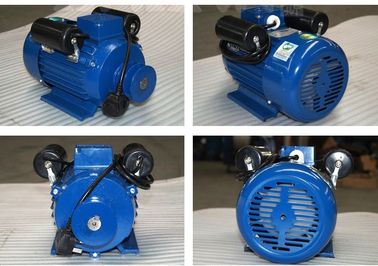

High Performance 5 Hp Single Phase Induction Motor With Cooled Roll Silicon YC Series 0

High Performance 5 Hp Single Phase Induction Motor With Cooled Roll Silicon YC Series 1







Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What’s the warranty period?
A: 1 year.

5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
